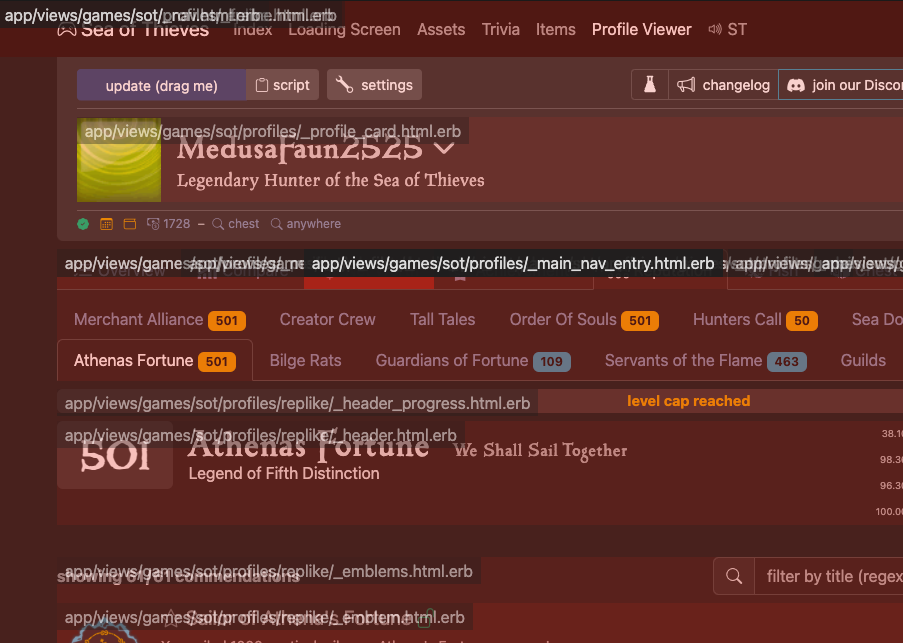

xray-rails (crude edition) / screenshot below

xray_rails.js

// Note: make sure your editor in step 2 is non-blocking (i.e. not "subl -w")
//
// 1. Enable in your config/environment/development.rb
//      config.action_view.annotate_rendered_view_with_filenames = true
//
// 2. Add this to your routes.rb
//      post "__xray/open", to: ->(env) {
//        editor = ENV["GEM_EDITOR"] || ENV["VISUAL"] || ENV["EDITOR"] || "/usr/local/bin/subl"
//        params = JSON.parse(Rack::Request.new(env).body.read)
//        path = Rails.root.join(params["path"].to_s)
//        `#{editor} #{path.to_s.shellescape}` if path.exist?
//        [200, { "Content-Type" => "text/plain" }, [""]]
//      } if Rails.env.development?
//
// 3. Import openXray, closeXray or registerXrayShortcut function
//      import { registerXrayShortcut } from "./xray_rails"
//      registerXrayShortcut((ev, mac) => (mac && ev.metaKey || !mac && ev.ctrlKey) && ev.shiftKey && ev.code == "KeyX")

export class Xray {
  static CSS = `
    #rails-xray-container {
      position: fixed;
      top: 0;
      bottom: 0;
      right: 0;
      left: 0;
      //background: rgba(255, 255, 0, 0.1);
      z-index: 99999;
    }
    #rails-xray-container .rails-xray-template {
      position: absolute;
      background: rgba(255, 0, 0, 0.1);
    }
    #rails-xray-container .rails-xray-template span {
      position: absolute;
      opacity: 0.6;
      padding: 0.1rem 0.5rem;
      background: rgba(33, 33, 33, 0.6);
      z-index: 9;
    }
    #rails-xray-container .rails-xray-template:hover {
      background: rgba(255, 0, 0, 0.5);
    }
    #rails-xray-container .rails-xray-template:hover span {
      background: rgba(33, 33, 33, 0.9);
      opacity: 1;
      z-index: 10;
    }
  `

  static get isMac() { return navigator.platform.toUpperCase().indexOf('MAC') >= 0 }

  constructor() {
    this.addStyles()
  }

  addStyles() {
    if(document.getElementById("rails-xray-styles")) return false
    const style = document.createElement("style")
    document.head.appendChild(style)
    style.id = "rails-xray-styles"
    style.innerHTML = this.constructor.CSS
  }

  computeBoundingBox(contents) {
    // Edge case: the container may not physically wrap its children, for
    // example if they are floated and no clearfix is present.
    if(contents.length == 1 && contents[0].offsetHeight <= 0) {
      return this.computeBoundingBox(Array.from(contents[0].children))
    }

    const boxFrame = {
      top: Number.POSITIVE_INFINITY,
      left: Number.POSITIVE_INFINITY,
      right: Number.NEGATIVE_INFINITY,
      bottom: Number.NEGATIVE_INFINITY,
    }

    contents.forEach(el => {
      if (!el || !( el.offsetWidth || el.offsetHeight || el.getClientRects().length )) return

      const frame = el.getBoundingClientRect()
      const frame_right = frame.left + frame.width
      const frame_bottom = frame.top + frame.height

      boxFrame.top = Math.min(frame.top, boxFrame.top)
      boxFrame.left = Math.min(frame.left, boxFrame.left)
      boxFrame.right = Math.max(frame_right, boxFrame.right)
      boxFrame.bottom = Math.max(frame_bottom, boxFrame.bottom)
    })

    return {
      left: boxFrame.left,
      top: boxFrame.top,
      width: boxFrame.right - boxFrame.left,
      height: boxFrame.bottom - boxFrame.top,
    }
  }

  findRenderedViews() {
    const result = []

    document.querySelectorAll('*:not(iframe):not(script)').forEach(el => {
      el.childNodes.forEach(node => {
        if (node.nodeType !== 8 || !node.data.startsWith(' BEGIN')) return false

        const id = node.data.match(/^\sBEGIN\s(.+)\s$/)[1]
        let el = node.nextSibling
        const res = []

        while (el && !(el.nodeType === 8 && el.data === ` END ${id} `)) {
          if (el.nodeType === 1 && el.tagName !== 'SCRIPT') {
            res.push(el)
          }
          el = el.nextSibling
        }

        result.push([id, res])
      })
    })

    return result
  }

  closeOverlay() {
    document.getElementById("rails-xray-container")?.remove()
  }

  renderOverlay() {
    this.closeOverlay()

    const ctn = document.createElement("div")
    ctn.id = "rails-xray-container"

    this.findRenderedViews().forEach(([id, contents]) => {
      const box = this.computeBoundingBox(contents)
      // console.log(id, contents, box)
      if(!Number.isFinite(box.left)) return

      const tel = document.createElement("div")
      ctn.append(tel)
      tel.classList.add("rails-xray-template")
      tel.setAttribute("data-id", id)
      tel.style.left = box.left + "px"
      tel.style.top = box.top + "px"
      tel.style.width = box.width + "px"
      tel.style.height = box.height + "px"

      tel.addEventListener("click", ev => {
        fetch("/__xray/open", {
          method: "POST",
          headers: { "Content-Type": "application/json" },
          body: JSON.stringify({ path: id }),
        }).then(_ => this.closeOverlay())
      })

      const label = document.createElement("span")
      tel.append(label)
      label.innerText = id
    })

    document.body.append(ctn)
  }
}

export function openXray() {
  new Xray().renderOverlay()
}

export function closeXray() {
  document.getElementById("rails-xray-container").remove()
}

export function registerXrayShortcut(callback) {
  document.addEventListener("keydown", ev => {
    if(callback(ev, Xray.isMac)) {
      new Xray().renderOverlay()
    } else if (ev.code == "Escape" && document.getElementById("rails-xray-container")) {
      closeXray()
    }
  })
}
