Spatial block bootstrap with clustered folds to estimate a global statistic (and CIs) for a raster.

sp_block_bootstrap.md

suppressPackageStartupMessages({
  library(terra)
  library(ggplot2)
  library(spatialsample)
  library(rsample)
  library(sf)
  library(dplyr)
})


f <- system.file("ex/elev.tif", package = "terra")
r <- rast(f)

plot(r)

elev_df <- as.data.frame(r, xy = TRUE)
head(elev_df)
#>            x        y elevation
#> 127 6.004167 50.17917       529
#> 128 6.012500 50.17917       542
#> 129 6.020833 50.17917       547
#> 130 6.029167 50.17917       535
#> 218 5.970833 50.17083       485
#> 219 5.979167 50.17083       497
nrow(elev_df)
#> [1] 4608

elev_sf <- st_as_sf(elev_df, coords = c("x", "y")) |>
  sf::st_set_crs(terra::crs(r))

spcv <- spatial_clustering_cv(
  elev_sf,
  v = 50 # how many splits?
)

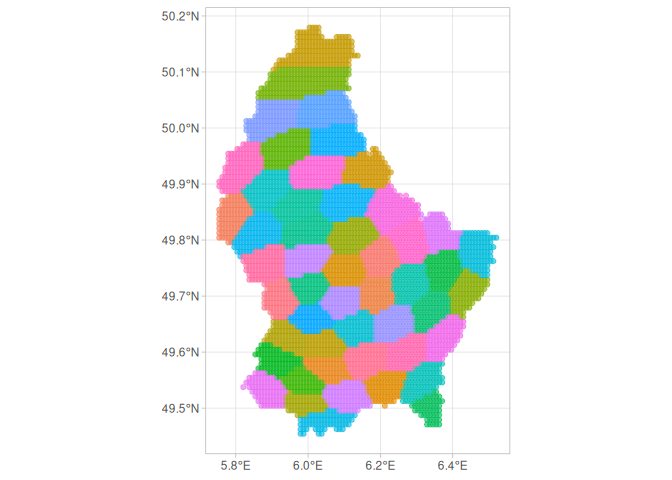

# look at the spatial clusers
autoplot(spcv) +
  theme_light() +
  theme(legend.position = "none")

bcv <- mutate(spcv, splits = purrr::map(splits, assessment))

# Function to perform spatial block bootstrapping
spatial_block_bootstrap <- function(blocks, times) {
  replicate(times,
    {
      sampled_blocks <- sample(blocks, replace = TRUE)
      do.call(rbind, sampled_blocks)
    },
    simplify = FALSE
  )
}

# Extract the blocks from the cross-validation object
blocks <- bcv$splits

# Perform spatial block bootstrapping
bdf_sp <- spatial_block_bootstrap(blocks, times = 100) |>
  bind_rows(.id = "replicate") |>
  mutate(
    bs_type = "spatial_block_bootstrap",
    id = replicate
  )

# Function to perform ordinary bootstrapping
bdf_ordinary <- bootstraps(elev_sf, times = 100) |>
  mutate(splits = purrr::map(splits, analysis)) |>
  tidyr::unnest(cols = splits) |>
  mutate(bs_type = "ordinary_bootstrap")

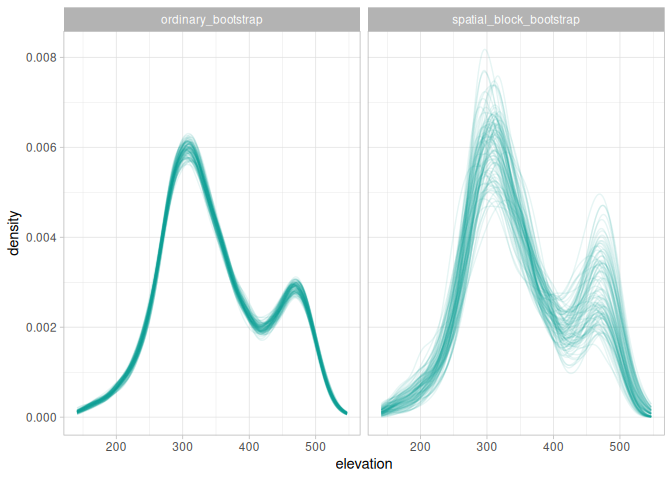

# Combine the two bootstrapped datasets and plot the results
bind_rows(bdf_sp, bdf_ordinary) |>
  ggplot() +
  aes(x = elevation, group = id) +
  stat_density(
    geom = "line", color = "#0f9e97", alpha = 0.1, position = "identity"
  ) +
  theme_light() +
  facet_wrap(~bs_type)

# Function to calculate the bootstrap estimate and confidence interval
bs_stat_ci <- function(x, f = sum) {
  bs_sum <- sf::st_drop_geometry(x) |>
    group_by(id) |>
    summarise(stat = f(elevation))

  tibble(
    stat = mean(bs_sum$stat),
    qi_low = quantile(bs_sum$stat, 0.025),
    qi_high = quantile(bs_sum$stat, 0.975),
    p_error = (qi_high - qi_low) / stat
  )
}

bs_stat_ci(bdf_sp)
#> # A tibble: 1 × 4
#>       stat   qi_low  qi_high p_error
#>      <dbl>    <dbl>    <dbl>   <dbl>
#> 1 1601492. 1441811. 1818061.   0.235
bs_stat_ci(bdf_ordinary)
#> # A tibble: 1 × 4
#>       stat   qi_low  qi_high p_error
#>      <dbl>    <dbl>    <dbl>   <dbl>
#> 1 1604672. 1595111. 1614591.  0.0121

^{Created on 2025-01-07 with reprex v2.1.1}

sp_block_bootstrap_mlr.md

suppressPackageStartupMessages({
  library(terra)
  library(ggplot2)
  library(sf)
  library(dplyr)
  library(rsample)
  library(mlr3spatiotempcv)
  library(mlr3)
  library(data.table)
})

# -- core functions ---

internal function to perform spatial block bootstrap param dt data.table param n_b number of bootstrap samples return data.table with bootstrap samples imports data.table

spatial_block_bootstrap <- function(dt, n_b, idc) {
  dt <- as.data.table(dt)
  unique_folds <- unique(dt$fold)
  # Sample folds with replacement
  bs_samp <- replicate(n_b,
    {
      sampled_folds <- sample(unique_folds, replace = TRUE)
      sampled_folds_dt <- data.table(fold = sampled_folds)
      bootstrap_sample <- dt[fold %in% sampled_folds]
      bootstrap_sample <- dt[sampled_folds_dt, on = .(fold), allow.cartesian = TRUE]
    },
    simplify = FALSE
  )
  data.table::rbindlist(bs_samp, idcol = idc)
}

generate spatial bootstrap sets param x sf object param n_folds number of folds param n_bootstrap number of bootstrap samples param idcol column name for bootstrap id param plot_folds logical, whether to plot the folds (useful for checks) return data.table with bootstrap samples imports mlr3spatiotempcv mlr3 data.table

sp_boot_sets <- function(x, n_folds = 50, n_bootstrap = 100,
                         idcol = "boot_id", plot_folds = TRUE) {
  x$row_id <- seq_len(nrow(x))

  x_tsk <- mlr3spatiotempcv::as_task_regr_st(
    x,
    target = "row_id"
  )
  # Instantiate Resampling
  rcv <- mlr3::rsmp("spcv_coords", folds = n_folds)
  rcv$instantiate(x_tsk)


  if (nrow(x) > 1e4) {
    sample_fold_n <- as.integer(ceiling(nrow(x) / n_folds * 0.1))
  } else {
    sample_fold_n <- NULL
  }

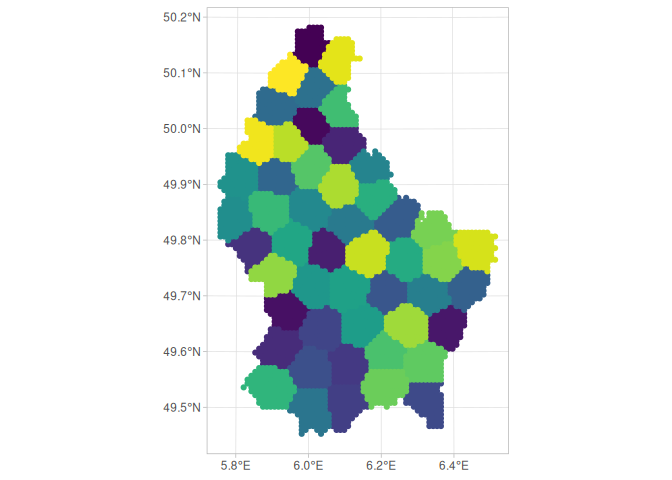

  p <- suppressMessages(
    autoplot(rcv, x_tsk, sample_fold_n = sample_fold_n) +
      scale_colour_viridis_d() +
      theme_light() +
      theme(legend.position = "none")
  )

  if (plot_folds) {
    print(p)
  }

  # left join with data.table between elev_sf and rsmp_idx by row_id
  x_sf_folds <- merge(as.data.table(x), rcv$instance, by = "row_id")
  spatial_block_bootstrap(x_sf_folds, n_bootstrap, idcol)
}


#--- main code ---

f <- system.file("ex/elev.tif", package = "terra")
r <- rast(f)
cent_coor <- terra::geom(
  terra::centroids(terra::as.polygons(terra::ext(r)))
)[1, ][c("x", "y")]

r <- terra::project(r, glue::glue(
  "+proj=laea +lon_0={cent_coor[1]} +lat_0={cent_coor[2]}",
  "+ellps=WGS84 +no_defs",
  .sep = " "
))

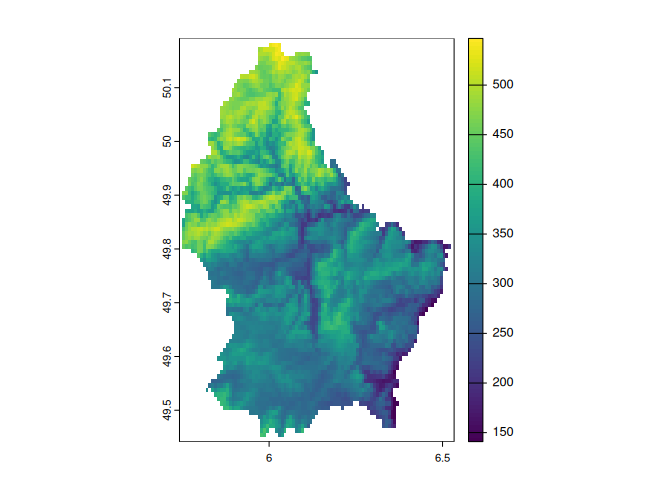

plot(r)

elev_sf <- as.data.frame(r, xy = TRUE) |>
  st_as_sf(coords = c("x", "y")) |>
  sf::st_set_crs(terra::crs(r))


bootstrap_sample_dt <- sp_boot_sets(elev_sf)

bootstrap_sample_dt[, bs_type := "spatial_block_bootstrap"]


# Function to perform ordinary bootstrapping
bdf_ordinary_dt <- bootstraps(elev_sf, times = 100) |>
  mutate(splits = purrr::map(splits, analysis)) |>
  tidyr::unnest(cols = splits) |>
  mutate(
    bs_type = "ordinary_bootstrap",
    boot_id = as.integer(stringr::str_extract(id, "\\d+"))
  ) |>
  as.data.table()

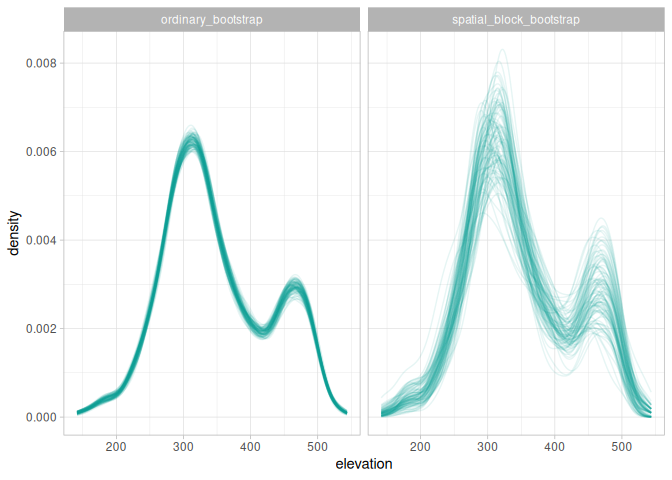

# Combine the two bootstrapped datasets and plot the results
rbind(bootstrap_sample_dt, bdf_ordinary_dt, fill = TRUE) |>
  ggplot() +
  aes(x = elevation, group = boot_id) +
  stat_density(
    geom = "line", color = "#0f9e97", alpha = 0.1, position = "identity"
  ) +
  theme_light() +
  facet_wrap(~bs_type)

bs_stat_ci <- function(x, f = mean) {
  bs_sum <- sf::st_drop_geometry(x) |>
    group_by(boot_id) |>
    summarise(stat = f(elevation))

  tibble(
    stat = mean(bs_sum$stat),
    qi_low = quantile(bs_sum$stat, 0.025),
    qi_high = quantile(bs_sum$stat, 0.975),
    p_error = (qi_high - qi_low) / stat
  )
}

bs_stat_ci(bootstrap_sample_dt)
#> # A tibble: 1 × 4
#>    stat qi_low qi_high p_error
#>   <dbl>  <dbl>   <dbl>   <dbl>
#> 1  348.   333.    363.  0.0849
bs_stat_ci(bdf_ordinary_dt)
#> # A tibble: 1 × 4
#>    stat qi_low qi_high p_error
#>   <dbl>  <dbl>   <dbl>   <dbl>
#> 1  348.   346.    350.  0.0109

^{Created on 2025-01-07 with reprex v2.1.1}

spatial_cluster_bootstrap.R

#' internal function to perform spatial block bootstrap
#' @param dt data.table
#' @param n_b number of bootstrap samples
#' @return data.table with bootstrap samples
#' @import data.table
#' @keywords internal
#' @noRd
spatial_block_bootstrap <- function(dt, tc, f, n_b, idc, progress) {
  dt <- as.data.table(dt)
  unique_folds <- unique(dt$fold)
  # Sample folds with replacement
  bs_samp <- purrr::map_dbl(
    seq_len(n_b), function(x) {
      # browser()
      sampled_folds <- sample(unique_folds, replace = TRUE)
      sampled_folds_dt <- data.table(fold = sampled_folds)
      bootstrap_sample <- dt[
        sampled_folds_dt,
        on = .(fold),
        allow.cartesian = TRUE
      ]

      f(bootstrap_sample[[tc]])
    },
    .progress = progress
  )
}

#' convert SpatRaster to sf
#' @param r SpatRaster
#' @return sf object
#' @keywords internal
#' @noRd
rast_to_sf <- function(r) {
  checkmate::assert_class(r, "SpatRaster")
  x <- as.data.frame(r, xy = TRUE) |>
    sf::st_as_sf(coords = c("x", "y")) |>
    sf::st_set_crs(terra::crs(r))

  x$row_id <- seq_len(nrow(x))
  return(x)
}


#' Generate spatial bootstrap statistics for a SpatRaster object.
#' @param x a SpatRaster object
#' @param n_folds number of folds
#' @param n_bootstrap number of bootstrap samples
#' @param idcol column name for bootstrap id
#' @param progress logical should progress be shown
#' @param sample_fold_n minimum number of points to plot in each for plotting
#' @return spatboot object with bootstrap results
#' @import mlr3spatiotempcv mlr3 data.table
#' @export
#' @details
#' This function calculates bootstrap statistics for a single band of a SpatRaster
#' object. It does this using spatially clustered bootstrap samples. The function
#' first converts the SpatRaster to an sf object, then uses the mlr3spatiotempcv
#' package to generate spatially clustered folds. The function then samples these
#' folds with replacement to generate bootstrap samples. The function returns a
#' `spatboot` object which contains the bootstrap samples, the bootstrap statistic,
#' the bootstrap confidence interval, the percentage confidence interval, and a ggplot
#' object of the folds.
spatial_cluster_bootstrap <- function(
    x, target_col, f, n_folds = 100, n_bootstrap = 100, alpha = 0.05,
    idcol = "boot_id", progress = TRUE, sample_fold_n = 1e3L) {
  checkmate::assert_class(x, "SpatRaster")
  checkmate::assert_character(target_col, max.len = 1)
  checkmate::assert_function(f)
  checkmate::assert_numeric(n_folds, lower = 3, max.len = 1)
  checkmate::assert_numeric(n_bootstrap, lower = 1, max.len = 1)
  checkmate::assert_character(idcol, max.len = 1)
  checkmate::assert_logical(progress, max.len = 1)
  checkmate::assert_integer(sample_fold_n, lower = 1, max.len = 1)

  x <- rast_to_sf(x)

  x_tsk <- mlr3spatiotempcv::as_task_regr_st(
    x,
    target = "row_id"
  )
  # Instantiate Resampling
  rcv <- mlr3::rsmp("spcv_coords", folds = n_folds)
  rcv$instantiate(x_tsk)


  if (nrow(x) / n_folds < sample_fold_n) {
    sample_fold_n <- NULL
  }

  p <- suppressMessages(
    autoplot(rcv, x_tsk, sample_fold_n = sample_fold_n) +
      scale_colour_viridis_d() +
      theme_light() +
      theme(legend.position = "none")
  )


  # left join with data.table between elev_sf and rsmp_idx by row_id
  x_sf_folds <- merge(as.data.table(x), rcv$instance, by = "row_id")
  boot_vec <- spatial_block_bootstrap(
    x_sf_folds, target_col, f, n_bootstrap, idcol, progress
  )

  boot_stat <- mean(boot_vec)

  boot_stat_ci_low <- quantile(boot_vec, alpha / 2)[[1]]
  boot_stat_ci_high <- quantile(boot_vec, 1 - alpha / 2)[[1]]

  sp_boot_obj <- list(
    boot_results = boot_vec,
    boot_stat = boot_stat,
    boot_stat_ci_low = boot_stat_ci_low,
    boot_stat_ci_high = boot_stat_ci_high,
    boot_stat_ci_perc = ((boot_stat_ci_high - boot_stat_ci_low) / boot_stat) * 100,
    fold_plot = p
  )
  class(sp_boot_obj) <- "spatboot"
  return(sp_boot_obj)
}

Thought... Using kmeans for the blocks does not ensure equally sized replacement. Maybe this is okay for some stats like mean but maybe this could be a problem for sum. Can we create clusters of equally size?

An optimized version now added that uses mlr3 and data.tbale... should be a bit faster. I think if we stick to means and scale to get sums we should be grand here, right?

The final R script is the most efficient option - it doesn't return the full sets but rather the statistic requested. This is somewhat limited - the function e.g. mean must accept a single function which is the raster band name. so this works fine for simple statistics like mean and sum - sum still comes with some caveats as the replacement is unlikley to be equally sized.
